Non-polarity DC Isolator Switch.
DIN Mounting, Distribution Board, Door Clutch Mounting or
Plastic Enclosure optional.
Compact structure and modular design, levels with different Poles
from 2 to 8 are available.
Parallel connections design, more big bore diameter makes
connection fastness and flexibility.
Fast switching structure, arcing time normally occurs less than
3ms.
Self-cleaning contact mechanism, extending the lifespan of switch.
Dynamic sealing design and world class sealing materials
guarantee an IP66 protection rate.
UL94V-0 standard flame resistant materials , the product can be
full loading operation at temperatures -40 ℃ ~+70 ℃.
DC 1500V insulation voltage design, with TUV,
CE(IEC/EN60947-3:2009+A1+A2), SAA(AS60947.3), DC-PV1 and
DC-PV2. certifications.

Ranger 60 Energy Storage System. System can be expanded upto 25kVA (5x MultiPlus II 5000). For custom specifications please inquire.

The Ranger 60 is a robust and versatile energy storage solution designed to meet the demands of both on-grid and off-grid applications. Proudly Australian-made, this system is engineered for reliability and efficiency. Below are the key specifications and features:

Standard Specifications:
Victron MultiPlus-II 5000VA Inverter/Charger x2 in parallel
Victron SmartSolar MPPT RS 450/200 (Upto 12kw PV)
Victron SmartShunt 500A for precise battery monitoring
Ekrano Touch Screen for intuitive monitoring and control
Hardwire & plug-in generator input with transfer switch
Plug and play setup, complete with a 15A outlet for immediate use
Capacity:
LiFEP04 SafeBatt Pro Batteries
Expandable up to 61.44 kWh total capacity
Construction & Design:
Waterproof and insulated for durability in harsh environments
Compact and efficient design for easy installation
Additional Features:
Seamless integration with existing energy systems
Built with high-quality materials sourced locally
Designed for optimal performance and longevity
The Ranger 60 is the perfect choice for those seeking a reliable and expandable energy storage solution. Whether you're powering a remote site or enhancing your home's energy independence, this system offers the flexibility and power you need.

New IP65 rated 51.2V 200Ah Prismatic 4S1P LFP battery. Completely Victron compatible, available on display in Unanderra

WISE - Ranger20
WISE Manufactured Cabinet (IP55 Rated) – Indoor/outdoor.
Victron 48/6000 Multi RS Inverter / Charger
The above has (2) 450V MPPT solar trackers
Victron Smart Shunt.
Victron Cerbo (Note Ekrano is no longer on front)
AC/DC Distribution
Programming as required.
Generator Input
230v AC Output.
1x 51.2v SafeBatt 5kw/h – Lithium Batteries

Optional Solar Kit Includes:
- Solar Panels, Flat Railing for Tin Roof, 15m Cabling, MC4 Connectors, MC4 Crimpers, Dektite, Stainless Ties, label kit, Length of conduit and associated expected glands.

The ultimate LiFePO4 battery for seamless on and off-grid applications. With 300Ah capacity and operating at 12.8V, its prismatic cell design allows for individual monitoring, ensuring precise management of energy usage for optimal performance.

The SafeBatt Liter model contains a 200A BMS.

All SafeBatt batteries are built using over specified cells, raising the low voltage cut off to allow for rated capacity without over stressing cells, further increasing lifespan and reliability.

Warranty is 5years.

The EconoMAX entry level complete system for small installations.

It is fitted with
- Victron Pheonix 12/1200 Inverter - Converts the battery energy to 230V for running appliances
- Victron BlueSmart 12/30 Charger - Allows connection of a generator or external power source to charge
- Victron SmartSolar 100/30 - Coverts solar input to battery for charging
- Victron SmartShunt 500A - This measures your state of charge to monitor battery level
- All DC circuits breakers - Including 1x spare for connection of future hardwire 12v appliances
- Anderson connection to connect battery
- MC4 connectors for solar

This kit also comes packaged with;
2m Battery Cable Set
1x M and 1x F MC4 Connector for Solar

This would couple well with a single 415w solar panel and a LIFEP04 battery. If you need any advice on design or setup please feel free to call before purchasing

Note: Subject to Schneider availability mid 2024

This hardware is an active power correction solution, from AccuSine familly, to help stabilize electrical networks by providing harmonic mitigation and power factor correction, and load balancing. In addition to 3-phase mitigation, it has the ability to compensate for neutral harmonic currents. This version is UL Type OPEN, or ingress protection IP00, and can be connected on Low Voltage networks rated 208 Volt to 415 Volt. It is specified for a standard Root Mean Square output current rating of 60 Amps, 180 Amps neutral. The chassis is floor standing, allow cable entry from bottom and is delivered in RAL7035 light grey. This active power filter achieves above standards performance THDi less or equal to 3%, is certified to CE, IBC 2015, EAC, RCM. And is designed to IEC 62477-1, IEC 61000-6-2, IEC 61000-6-4 Class A, IEC 61439-1 and IEEE 519-2014. Up to 12 units in parallel per set of CT; any size unit combination possible (subject to network characteristics). Master capable. Frame exterior dimensions are 440 millimetres in width, 265 millimetres in depth, 960 millimetres in height and product weight 75 kg.

32a 5PIN Mining Specification Extension Lead. Please note our leads are specific as they comply to AS3000 whereby dissimilar material or CSA conductors should not be paralleled and as a result the sheath is only earth at the origin

Rated Power :20KW
Output Power: 1PLUG (DC*1)
(CCS1 or CCS2: 150Vdc–1000Vdc, 0~66.7A)
Communication: OCPP 1.6J
Network: Ethernet/4G
Application: Indoor/Outdoor
Working Temperature: -30℃~+55℃
Protection Level: IP55
Cooling: Automatic forced-air cooling
Standards: IEC61851-1, IEC61851-23
Enclosure: Steel
Dimension: 450*250*850mm(L*W*T)
Net Weight: 65kG
Installation: Wall-Mounted
* 9.1inch LCD TouchS creen
* Emergency Stop Button
* LED indicator
* 5m cable length
* 2 RFID Cards

Lead time 3-4weeks for delivery

Rated Power :30KW
Output Power: 1PLUG (DC*1)
(CCS1 or CCS2: 150Vdc–1000Vdc, 0~66.7A)
Communication: OCPP 1.6J
Network: Ethernet/4G
Application: Indoor/Outdoor
Working Temperature: -30℃~+55℃
Protection Level: IP55
Cooling: Automatic forced-air cooling
Standards: IEC61851-1, IEC61851-23
Enclosure: Steel
Dimension: 450*250*850mm(L*W*T)
Net Weight: 65kG
Installation: Wall-Mounted
* 9.1inch LCD TouchS creen
* Emergency Stop Button
* LED indicator
* 5m cable length
* 2 RFID Cards

Lead time 3-4weeks for delivery

Rated Power :40KW
Output Power: 1PLUG (DC*1)
(CCS1 or CCS2: 150Vdc–1000Vdc, 0~66.7A)
Communication: OCPP 1.6J
Network: Ethernet/4G
Application: Indoor/Outdoor
Working Temperature: -30℃~+55℃
Protection Level: IP55
Cooling: Automatic forced-air cooling
Standards: IEC61851-1, IEC61851-23
Enclosure: Steel
Dimension: 450*250*850mm(L*W*T)
Net Weight: 65kG
Installation: Wall-Mounted
* 9.1inch LCD TouchS creen
* Emergency Stop Button
* LED indicator
* 5m cable length
* 2 RFID Cards

Lead time 3-4weeks for delivery

Rated Power : 240kW (Adjustable Down)
Output Connector: 1 PLUG (DC*1)
(CCS1: 0~250A 150VDC-1000V )
or (CCS2: 0~250A 150VDC-1000V )
or ( CHADEMO: 0~125A 150VDC-500V)
Communiction: OCPP 1.6J
Network: Ethernet/4G
Application: Indoor/Outdoor
Working Temperature: -30℃~+55℃
Protection Level: IP55
Cooling: Automatic forced-air cooling
Standards: IEC61851-1, IEC61851-23
Enclosure: Carbon Steel
Dimension: 800*800*1800mm(L*W*T)
Net Weight: ≥300kG
Installation: Floor-Stand
* 9.1inch LCD TouchScreen
* Emergency Stop Button
* LED indicator
* 5m cable length
* 2 RFID Cards

The SmartShunt is an all-in-one battery monitor, only without a display. Your phone acts as the display. The SmartShunt connects via Bluetooth to the VictronConnect app on your phone (or tablet) and you can conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more.

Alternatively the SmartShunt can be connected and be read by a GX device. Connection to the SmartShunt is made via a VE.Direct cable.

The SmartShunt is a good alternative for a BMV battery monitor, especially for systems where battery monitoring is needed but less wiring and clutter is wanted.
The SmartShunt is equipped with Bluetooth, a VE.Direct port and a connection that can be used for: monitoring a second battery, midpoint monitoring or a temperature sensor.

Models:
IP21: 300A, 500A, 1000A, 2000A - IP65: 300A, 500A, 1000A, 2000A

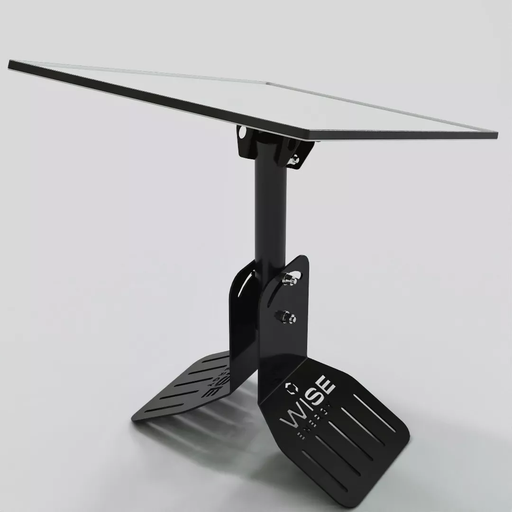

Australian Made Bracket to suit Starlink.
NB - this model is for the latest Starlink version, Gen 3 (i.e. the Starlink dish is kickstand-style)

Australian made Starlink bracket for flat roofs.
NB - this model is for the latest Starlink version, Gen 3 (i.e. the Starlink dish is kickstand-style)

WISE - Ranger35
WISE Manufactured Cabinet (IP55 Rated) – Indoor/outdoor.
Victron 48/6000 Multi RS Inverter / Charger
The above has (2) 450V MPPT solar trackers
Victron Smart Shunt.
Victron Cerbo (Note Ekrano is no longer on front)
AC/DC Distribution
Programming as required.
Generator Input
230v AC Output.
1x 51.2v SafeBatt 5kw/h – Lithium Batteries

Optional Solar Kit Includes:
- Solar Panels, Flat Railing for Tin Roof, 15m Cabling, MC4 Connectors, MC4 Crimpers, Dektite, Stainless Ties, label kit, Length of conduit and associated expected glands.

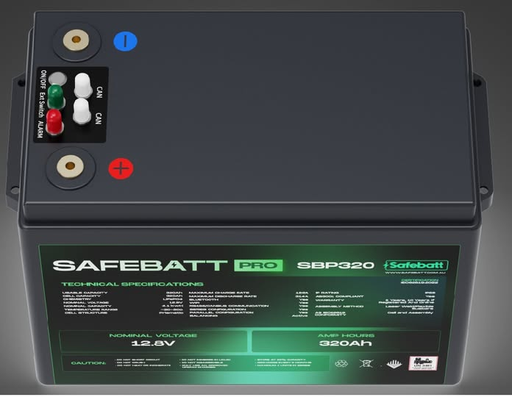

The ultimate LiFePO4 battery for seamless on and off-grid applications. With 320Ah capacity and operating at 12.8V, its prismatic cell design allows for individual monitoring, ensuring precise management of energy usage for optimal performance.

The SafeBatt Pro model contains a 400A BMS, set to 300Ah allowing a truce 1C discharge. Additionally it has CANBUS and Wifi Communications.

All SafeBatt batteries are built using over specified cells, raising the low voltage cut off to allow for rated capacity without over stressing cells, further increasing lifespan and reliability.

This unit is ready to go with billing bypassed, 50A 3 Phase AC connector, Trolley and all required protections. Perfect companion for any business using EVs regularly or breakdown services.

Rated Power :20KW
Output Power: 1PLUG (DC*1)
(CCS1 or CCS2: 150Vdc–1000Vdc, 0~66.7A)
Communication: OCPP 1.6J
Network: Ethernet/4G
Application: Indoor/Outdoor
Working Temperature: -30℃~+55℃
Protection Level: IP55
Cooling: Automatic forced-air cooling
Standards: IEC61851-1, IEC61851-23
Enclosure: Steel
Dimension: 450*250*850mm(L*W*T)
Net Weight: 65kG
Installation: Wall-Mounted
* 9.1inch LCD TouchS creen
* Emergency Stop Button
* LED indicator
* 5m cable length
* 2 RFID Cards

Lead time 3-4weeks for delivery

PLEASE NOTE THIS PRICE IS AFTER STC REBATES. FOR CONTRACTORS OR INSTALLERS PLEASE ENQUIRE FOR TRADE PRICING.
The SolarStore50 is a robust, fully Australian-designed battery energy storage system, offering up to 51.2kWh of dependable power and built for maximum durability in Australia’s toughest conditions. Suitable for both on-grid and off-grid applications, its advanced battery management and modular, inverter-agnostic design ensure seamless integration with existing solar, generator, or grid systems—making it ideal for homes, businesses, and remote sites. The SolarStore50’s unique architecture guarantees easy serviceability and backwards compatibility with a wide range of inverters, and it serves as an excellent upgrade for old lead-acid setups. Ready for EV charging, the SolarStore50 provides convenient support for electric vehicles. With smart monitoring, users can effortlessly track and optimise their energy usage. By storing excess solar or off-peak power, the SolarStore50 can substantially reduce your energy bills and carbon footprint. Backed by a “no BS” warranty and local support, it delivers reliable, scalable power for today and the future.

Maximum Inverter Capacity Upto 10kW (1 or 3 Phase)
Solar Input Capacity Upto 13kW
EV Charger Optional
Monitoring Display and Phone Application
Maximum Capacity 51.20kwHr
Nominal Voltage 51.2V
Battery Chemistry Lithium Iron Phosphate LiFePO4 (LFP)
Battery Protection Levels 6 Stage Protection (Short Circuit, Over Current, Over Voltage, Under Voltage, Under Temperature, Over Temperature)
Warranty 5 Years Inverter, 10 Years Battery

This battery tray and battery setup is the perfect upgrade to your Avida motor home. The tray replaces the existing motor home tray and squeezes 3x 320Ah SafeBatt Pro Batteries. These batteries are fitted with fire suppression and CANBUS to integrate perfectly into the Victron GX architecture.

The tray has cable management and a spot for a Victron Energy 500A Smart Shunt aswell.

Batteries are tested to AU IEC62619 to ensure compliance to the latest AS3001:2022 for portable vehicles.
