Ranger 60 Energy Storage System. System can be expanded upto 25kVA (5x MultiPlus II 5000). For custom specifications please inquire.

The Ranger 60 is a robust and versatile energy storage solution designed to meet the demands of both on-grid and off-grid applications. Proudly Australian-made, this system is engineered for reliability and efficiency. Below are the key specifications and features:

Standard Specifications:
Victron MultiPlus-II 5000VA Inverter/Charger x2 in parallel
Victron SmartSolar MPPT RS 450/200 (Upto 12kw PV)
Victron SmartShunt 500A for precise battery monitoring
Ekrano Touch Screen for intuitive monitoring and control
Hardwire & plug-in generator input with transfer switch
Plug and play setup, complete with a 15A outlet for immediate use
Capacity:
LiFEP04 SafeBatt Pro Batteries
Expandable up to 61.44 kWh total capacity
Construction & Design:
Waterproof and insulated for durability in harsh environments
Compact and efficient design for easy installation
Additional Features:
Seamless integration with existing energy systems
Built with high-quality materials sourced locally
Designed for optimal performance and longevity
The Ranger 60 is the perfect choice for those seeking a reliable and expandable energy storage solution. Whether you're powering a remote site or enhancing your home's energy independence, this system offers the flexibility and power you need.

WISE - Ranger20
WISE Manufactured Cabinet (IP55 Rated) – Indoor/outdoor.
Victron 48/6000 Multi RS Inverter / Charger
The above has (2) 450V MPPT solar trackers
Victron Smart Shunt.
Victron Cerbo (Note Ekrano is no longer on front)
AC/DC Distribution
Programming as required.
Generator Input
230v AC Output.
1x 51.2v SafeBatt 5kw/h – Lithium Batteries

Optional Solar Kit Includes:
- Solar Panels, Flat Railing for Tin Roof, 15m Cabling, MC4 Connectors, MC4 Crimpers, Dektite, Stainless Ties, label kit, Length of conduit and associated expected glands.

The EconoMAX entry level complete system for small installations.

It is fitted with
- Victron Pheonix 12/1200 Inverter - Converts the battery energy to 230V for running appliances
- Victron BlueSmart 12/30 Charger - Allows connection of a generator or external power source to charge
- Victron SmartSolar 100/30 - Coverts solar input to battery for charging
- Victron SmartShunt 500A - This measures your state of charge to monitor battery level
- All DC circuits breakers - Including 1x spare for connection of future hardwire 12v appliances
- Anderson connection to connect battery
- MC4 connectors for solar

This kit also comes packaged with;
2m Battery Cable Set
1x M and 1x F MC4 Connector for Solar

This would couple well with a single 415w solar panel and a LIFEP04 battery. If you need any advice on design or setup please feel free to call before purchasing

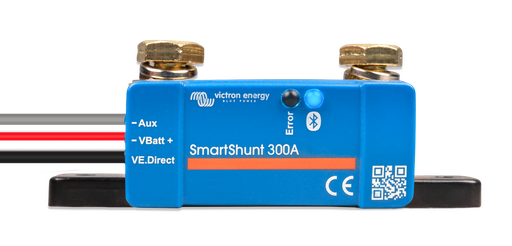

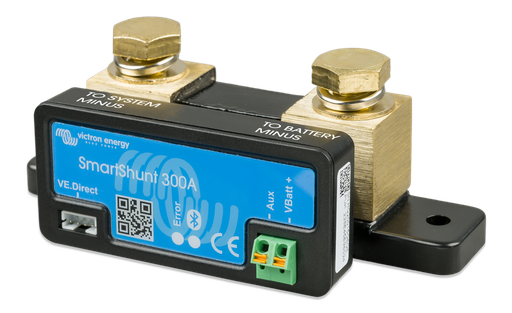

The SmartShunt is an all-in-one battery monitor, only without a display. Your phone acts as the display. The SmartShunt connects via Bluetooth to the VictronConnect app on your phone (or tablet) and you can conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more.

Alternatively the SmartShunt can be connected and be read by a GX device. Connection to the SmartShunt is made via a VE.Direct cable.

The SmartShunt is a good alternative for a BMV battery monitor, especially for systems where battery monitoring is needed but less wiring and clutter is wanted.
The SmartShunt is equipped with Bluetooth, a VE.Direct port and a connection that can be used for: monitoring a second battery, midpoint monitoring or a temperature sensor.

Models:
IP21: 300A, 500A, 1000A, 2000A - IP65: 300A, 500A, 1000A, 2000A

WISE - Ranger35
WISE Manufactured Cabinet (IP55 Rated) – Indoor/outdoor.
Victron 48/6000 Multi RS Inverter / Charger
The above has (2) 450V MPPT solar trackers
Victron Smart Shunt.
Victron Cerbo (Note Ekrano is no longer on front)
AC/DC Distribution
Programming as required.
Generator Input
230v AC Output.
1x 51.2v SafeBatt 5kw/h – Lithium Batteries

Optional Solar Kit Includes:
- Solar Panels, Flat Railing for Tin Roof, 15m Cabling, MC4 Connectors, MC4 Crimpers, Dektite, Stainless Ties, label kit, Length of conduit and associated expected glands.
