Non-polarity DC Isolator Switch.
DIN Mounting, Distribution Board, Door Clutch Mounting or
Plastic Enclosure optional.
Compact structure and modular design, levels with different Poles
from 2 to 8 are available.
Parallel connections design, more big bore diameter makes
connection fastness and flexibility.
Fast switching structure, arcing time normally occurs less than
3ms.
Self-cleaning contact mechanism, extending the lifespan of switch.
Dynamic sealing design and world class sealing materials
guarantee an IP66 protection rate.
UL94V-0 standard flame resistant materials , the product can be
full loading operation at temperatures -40 ℃ ~+70 ℃.
DC 1500V insulation voltage design, with TUV,
CE(IEC/EN60947-3:2009+A1+A2), SAA(AS60947.3), DC-PV1 and
DC-PV2. certifications.

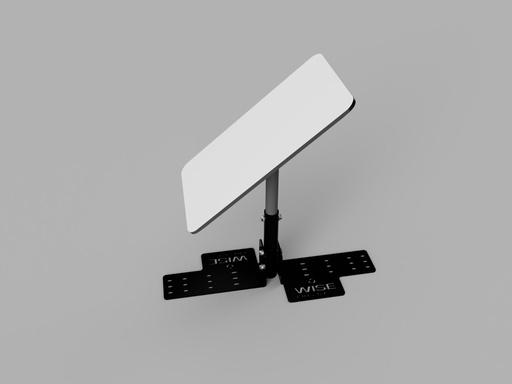

Australian made Starlink bracket for flat roofs.
NB - this model works for Starlink Gen 2 only (i.e. the Starlink dish is tripod-style)

Ranger 60 Energy Storage System. System can be expanded upto 25kVA (5x MultiPlus II 5000). For custom specifications please inquire.

The Ranger 60 is a robust and versatile energy storage solution designed to meet the demands of both on-grid and off-grid applications. Proudly Australian-made, this system is engineered for reliability and efficiency. Below are the key specifications and features:

Standard Specifications:
Victron MultiPlus-II 5000VA Inverter/Charger x2 in parallel
Victron SmartSolar MPPT RS 450/200 (Upto 12kw PV)
Victron SmartShunt 500A for precise battery monitoring
Ekrano Touch Screen for intuitive monitoring and control
Hardwire & plug-in generator input with transfer switch
Plug and play setup, complete with a 15A outlet for immediate use
Capacity:
LiFEP04 SafeBatt Pro Batteries
Expandable up to 61.44 kWh total capacity
Construction & Design:
Waterproof and insulated for durability in harsh environments
Compact and efficient design for easy installation
Additional Features:
Seamless integration with existing energy systems
Built with high-quality materials sourced locally
Designed for optimal performance and longevity
The Ranger 60 is the perfect choice for those seeking a reliable and expandable energy storage solution. Whether you're powering a remote site or enhancing your home's energy independence, this system offers the flexibility and power you need.

WISE - Ranger20
WISE Manufactured Cabinet (IP55 Rated) – Indoor/outdoor.
Victron 48/6000 Multi RS Inverter / Charger
The above has (2) 450V MPPT solar trackers
Victron Smart Shunt.
Victron Cerbo (Note Ekrano is no longer on front)
AC/DC Distribution
Programming as required.
Generator Input
230v AC Output.
1x 51.2v SafeBatt 5kw/h – Lithium Batteries

Optional Solar Kit Includes:
- Solar Panels, Flat Railing for Tin Roof, 15m Cabling, MC4 Connectors, MC4 Crimpers, Dektite, Stainless Ties, label kit, Length of conduit and associated expected glands.

Welder isolation switch 1Pole 300 Amp @ 30% duty. Male mech connectors on line side of switch, Female mech connectors on load side.

The EconoMAX entry level complete system for small installations.

It is fitted with
- Victron Pheonix 12/1200 Inverter - Converts the battery energy to 230V for running appliances
- Victron BlueSmart 12/30 Charger - Allows connection of a generator or external power source to charge
- Victron SmartSolar 100/30 - Coverts solar input to battery for charging
- Victron SmartShunt 500A - This measures your state of charge to monitor battery level
- All DC circuits breakers - Including 1x spare for connection of future hardwire 12v appliances
- Anderson connection to connect battery
- MC4 connectors for solar

This kit also comes packaged with;
2m Battery Cable Set
1x M and 1x F MC4 Connector for Solar

This would couple well with a single 415w solar panel and a LIFEP04 battery. If you need any advice on design or setup please feel free to call before purchasing

Note: Subject to Schneider availability mid 2024


PowerLogic AccuSine EVP+ is an active power correction solution for Electronic VAR Compensation / Static VAR Generator It is designed for Dynamic VAR Correction (PF correction) for industrial applications including mission critical environments. PowerLogic AccuSine EVP+ can also be configured for Harmonic Filtering and Network Unbalance Correction. The AccuSine EVC+ series can be used on a 208V to 480V network. VAR correction range : 1 kVar to 55 kVar at 208V network and 1 KVAR to 100 kVar at (380V to 480V) network. Includes a touchscreen HMI for configuration, commissioning and waveform capture. Connections include RS485 for Modbus protocol, and an USB port for firmware upgrades or reports. To be used by OEM (provided in an IP00 / UL open chassis) to be installed in a cabinet. To be used by OEM (IP00 / UL Type Open) chassis mount to be installed in a cabinet. The dimensions of the chassis are 1260mm in Height, 440mm in Width, 265mm in Depth, Weight 90kg. Certified for HCAI, CE, UKCA, RCM, UL, CSA and more, plus compliant with IEC 61439-1 and IEC 61439-2. Use M8 hardware to mount the unit in an enclosure. Remote management possible with EcoStruxure solution software. Avoid Power Factor Penalty, Improved Efficiency and Relibility, Reduced downtime. Up to 10 units can be paralleled, to achieve instantaneous VAR injection.
